Comb Ridge Origins (continued)
Most
monoclines are the surface expression of a reverse fault in the older
rocks deep beneath the surface (see attached figure for possible
inclusion here). This intense compression shoved older rocks eastward
and upward over younger rocks along a low angle fault, tilting the
sedimentary layers far above. The surface representation of this deep
fault after ~50 million years of erosion creates the current
incarnation of Comb Ridge - a hogback of fiercely resistant red
sandstone coupled with the adjacent cottonwood-lined valley of Comb
Wash, hewn from easily eroded shale and siltstone. Both are clear
expressions of the monocline.
RF
PLEASE JOIN THE ZEPHYR BACKBONE
details on our home page

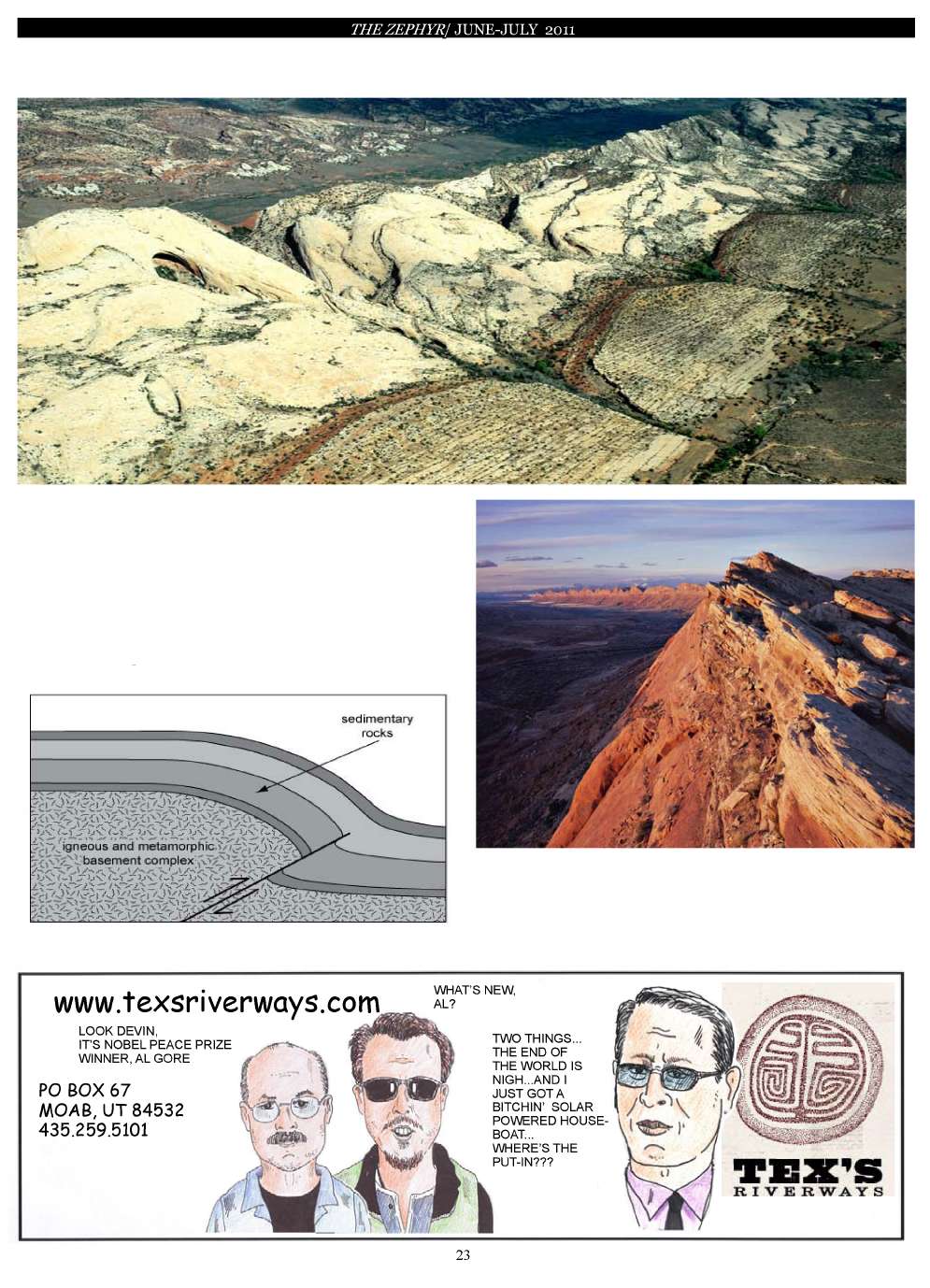

Cross-section
through a typical monocline showing the inferred reverse fault at depth
that at the surface is expressed as a simple ramp-type fold.
